C-130 Hercules

Camp Branch dirt landing zone training

A C-130H Hercules aircraft from Youngstown Air Reserve Station takes off from a dirt airstrip during a training mission at Camp Branch in Charleston, West Virginia, Aug. 9, 2017. The C-130 is a tactical airlift aircraft, able to access remote locations and land on a variety of surfaces. This type of training mission helps ensure air crew members are qualified for dirt landings. (U.S. Air Force photo/Senior Airman Jeffrey Grossi)

Camp Branch dirt landing zone training

A C-130H Hercules aircraft from Youngstown Air Reserve Station lands on a dirt airstrip during a training mission at Camp Branch in Charleston, West Virginia, Aug. 9, 2017. The C-130 is a tactical airlift aircraft, able to access remote locations and land on a variety of surfaces. This type of training mission helps ensure air crew members are qualified for dirt landings. (U.S. Air Force photo/Senior Airman Jeffrey Grossi)

After launch at Kelly Field: activity continues at the 910th’s aerial spray ops base

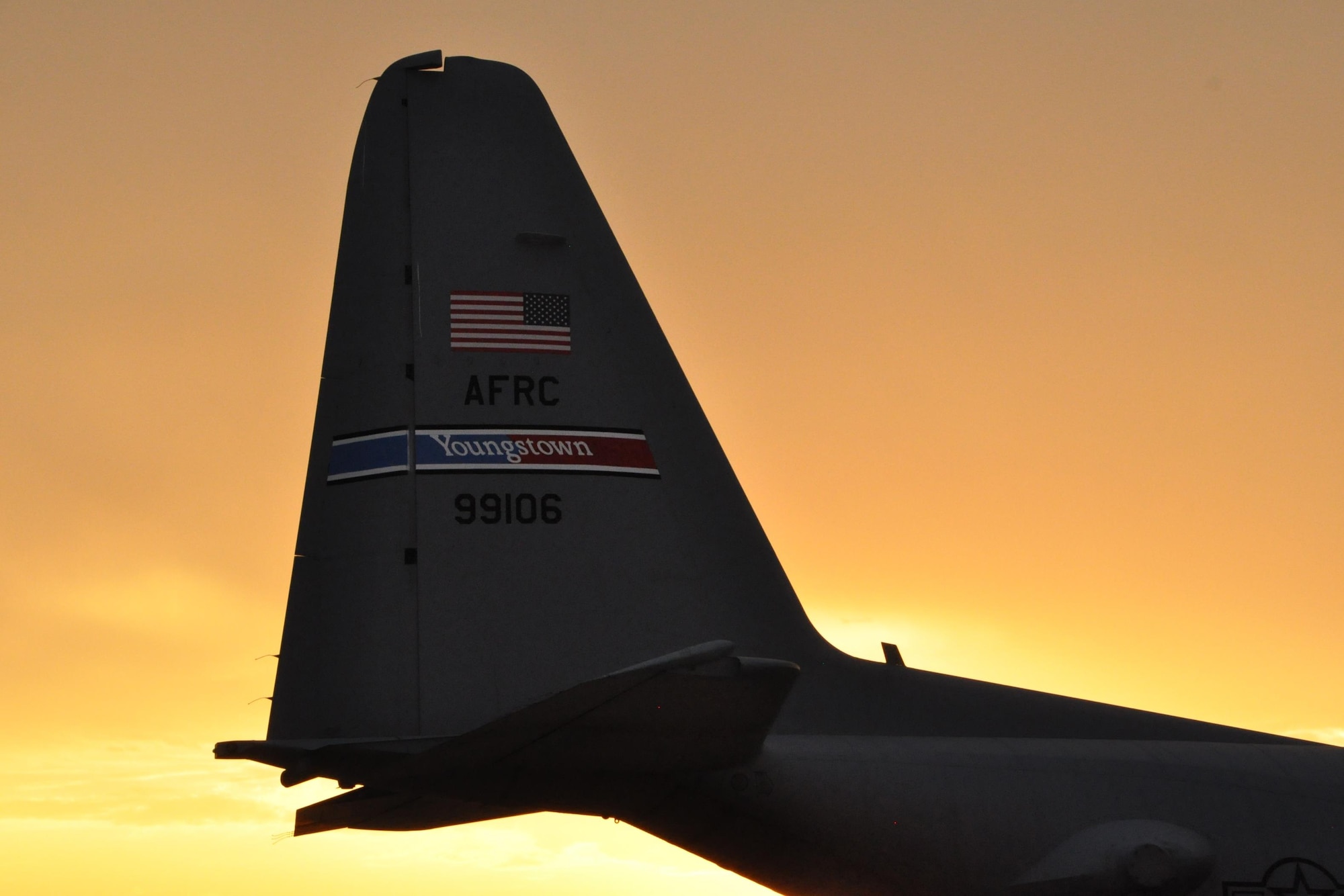

The tail flash of a specially modified Air Force Reserve C-130 Hercules aircraft, assigned to the 910th Airlift Wing based at Youngstown Air Reserve Station, Ohio, is clearly visible as it is accented by the setting sun over the Kelly Field Annex here, Sept. 19, 2017. The aircraft, the 910th’s flagship, is a backup to three C-130s temporarily based at Kelly Field to conduct mosquito control aerial spray applications over areas of eastern Texas devastated by Hurricane Harvey. Since operations began, this special mission has treated more than 2.3 million acres at the direction of Federal Emergency Management Agency (FEMA) and the Texas Department of State Health Services (DSHS) to assist in recovery efforts by helping contain the significant increase in pest insects caused by large amounts of standing, stagnant water. The 910th Airlift Wing operates the Department of Defense’s only aerial spray capability to control pest insect populations, eliminate undesired and invasive vegetation and disperse oil spills in large bodies of water. (U.S. Air Force photo/Master Sgt. Bob Barko Jr.)

910th launches mission against mosquitos in Harvey's wake

A specially modified Air Force Reserve C-130 Hercules aircraft, assigned to the 910th Airlift Wing based at Youngstown Air Reserve Station, Ohio, takes off from here, Sept. 9, 2017, to conduct mosquito control aerial spray operations over areas of eastern Texas devastated by Hurricane Harvey. Due to large amounts of standing, polluted water, the number of pest insects that can transmit diseases is increasing significantly. This situation poses a potential health risk to residents of eastern Texas and is impacting first responders and recovery workers as clean-up and repair efforts continue. The Federal Emergency Management Agency (FEMA) and the Texas Department of State Health Services (DSHS) have requested the support of the 910th to treat potentially millions of affected acres. Nearly 80 Reserve Citizen Airmen are working out of the Kelly Field Annex here to support the mission including members of the 910th’s Aerial Spray Flight, Aerial Spray Maintenance Flight, Operations Support Squadron, Aircraft Maintenance Squadron, Force Support Squadron, Logistics Readiness Squadron and the Wing Public Affairs Office. The 502nd Operations Support Squadron, based at the Kelly Field Annex, is also providing invaluable support to the aerial spray mission. The 910th Airlift Wing operates the Department of Defense’s only aerial spray capability to control pest insect populations, eliminate undesired and invasive vegetation and disperse oil spills in large bodies of water. (U.S. Air Force photo/Master Sgt. Bob Barko Jr.)

Mission

The C-130 Hercules primarily performs the tactical portion of the airlift mission. The aircraft is capable of operating from rough, dirt strips and is the prime transport for airdropping troops and equipment into hostile areas. The C-130 operates throughout the U.S. Air Force, serving with Air Mobility Command, Air Force Special Operations Command, Air Combat Command, U.S. Air Forces in Europe, Pacific Air Forces, Air National Guard and the Air Force Reserve Command, fulfilling a wide range of operational missions in both peace and war situations. Basic and specialized versions of the aircraft airframe perform a diverse number of roles, including airlift support, Antarctic ice resupply, aeromedical missions, weather reconnaissance, aerial spray missions, firefighting duties for the U.S. Forest Service and natural disaster relief missions.

Features

Using its aft loading ramp and door, the C-130 can accommodate a wide variety of oversized cargo, including everything from utility helicopters and six-wheeled armored vehicles to standard palletized cargo and military personnel. In an aerial delivery role, it can airdrop loads up to 42,000 pounds or use its high-flotation landing gear to land and deliver cargo on rough, dirt strips.

The flexible design of the Hercules enables it to be configured for many different missions, allowing one aircraft to perform the role of many. Much of the special mission equipment added to the Hercules is removable, allowing the aircraft to return to its cargo delivery role if desired. Additionally, the C-130 can be rapidly reconfigured for the various types of cargo such as palletized equipment, floor-loaded material, airdrop platforms, container delivery system bundles, vehicles and personnel or aeromedical evacuation.

The C-130J is the latest addition to the C-130 fleet and has replaced aging C-130Es and some of the high time C-130Hs. The C-130J incorporates state-of-the-art technology, which reduces manpower requirements, lowers operating and support costs, and provides life-cycle cost savings over earlier C-130 models. Compared to older C-130s, the J model climbs faster and higher, flies farther at a higher cruise speed, and takes off and lands in a shorter distance. The C-130J-30 is a stretch version, adding 15 feet to the fuselage, increasing usable space in the cargo compartment.

C-130J/J-30 major system improvements include advanced two-pilot flight station with fully integrated digital avionics, color multifunctional liquid crystal and head-up displays and state-of-the-art navigation that includes a dual inertial navigation system and GPS. The aircraft also features fully integrated defensive systems, low-power color radar, digital moving map display, new turboprop engines with six-bladed all-composite propellers and a digital auto pilot. The C-130J/J-30 also includes improved fuel, environmental and ice-protection and an enhanced cargo-handling system.

Background

The Air Force issued its original design specification in 1951, yet the remarkable C-130 remains in production. The initial production model was the C-130A, with four Allison T56-A-11 or -9 turboprop engines. A total of 219 were ordered and deliveries began in December 1956. The C-130B introduced Allison T56-A-7 turboprop engines and the first of 134 entered Air Force service in May 1959.

Introduced in August of 1962, the 389 C-130Es that were ordered using the same Allison T56-A-7 engine, but added two 1,290 gallon external fuel tanks and an increased maximum takeoff weight capability. June 1974 introduced the first of 308 C-130Hs with the more powerful Allison T56-A-15 turboprop engine. Nearly identical to the C-130E externally, the new engine brought major performance improvements to the aircraft.

The latest C-130 to be produced, the C-130J, entered the inventory in February 1999. With the noticeable difference of a six-bladed composite propeller coupled to a Rolls-Royce AE2100D3 turboprop engine, the C-130J brings substantial performance improvements over all previous models. The C-130J-30, a stretch version with a 15-foot fuselage extension, increases the capabilities even more. To date, the Air Force has taken delivery of 121 C-130J aircraft from Lockheed-Martin Aeronautics Company.

Active-duty locations for the C-130 and its variations are Dyess Air Force Base, Texas; Little Rock AFB, Arkansas; Ramstein Air Base, Germany; and Yokota AB, Japan.

Air Force Reserve locations for assigned C-130 models are Dobbins Air Reserve Base, Georgia; Keesler AFB, Mississippi; Maxwell AFB, Alabama; Minnesota-St. Paul Joint Air Reserve Station, Minnesota; Peterson AFB, Colorado; and Youngstown ARS, Ohio.

Air National Guard locations for the C-130 and its variations are Bradley Air National Guard Base, Connecticut;  Joint Reserve Base Carswell, Texas; Channel Island ANG Station, California; Cheyenne Municipal Airport, Wyoming; Great Falls ANGB, Montana; Little Rock AFB, Arkansas; Louisville IAP, Kentucky; Mansfield Lahm ANG Base, Ohio;  Minnesota-St. Paul ARS, Minnesota;  Muñiz ANGB, Puerto Rico; New Castle County ANGB, Delaware; Greater Peoria Regional Airport, Illinois; Quonset State Airport, Rhode Island; Reno-Tahoe IAP, Nevada; Savannah IAP, Georgia; Schenectady MAP, New York; Rosecrans Memorial Airport, Missouri; and Yeager Airport, West Virginia.

General Characteristics

Primary Function: Global airlift

Contractor: Lockheed-Martin Aeronautics Company

Power Plant:

C-130E: Four Allison T56-A-7 turboprops; 4,200 prop shaft horsepower

C-130H: Four Allison T56-A-15 turboprops; 4,591prop shaft horsepower

C-130J: Four Rolls-Royce AE 2100D3 turboprops; 4,700 horsepower

Length: C-130E/H/J: 97 feet, 9 inches (29.3 meters)

C-130J-30: 112 feet, 9 inches (34.69 meters)

Height: 38 feet, 10 inches (11. 9 meters)

Wingspan: 132 feet, 7 inches (39.7 meters)

Cargo Compartment:

C-130E/H/J: length, 41 feet (12.5 meters); width, 123 inches (meters); height, 9 feet (2.74 meters). Rear ramp: length, 119 inches (36.27 meters); width, 118.9 inches (3.02 meters)

C-130E/H/J-30: length, 56 feet (16.9 meters); width, 123 inches (3.12 meters); height, 9 feet (2.74 meters). Rear ramp: length, 119.9 inches (3.12 meters); width, 118.9 inches (36.24 meters)

Speed:

C-130E: 345 mph/300 ktas (Mach 0.49) at 20,000 feet (6,060 meters)

C-130H: 366 mph/318 ktas (Mach 0.52) at 20,000 feet (6,060 meters)

C-130J: 417 mph/362 ktas (Mach 0.59) at 22,000 feet (6,706 meters)

C-130J-30: 410 mph/356 ktas (Mach 0.58) at 22,000 feet (6,706 meters)

Ceiling:

C-130J: 28,000 feet (8,615 meters) with 42,000 pounds (19,090 kilograms) payload

C-130J-30: 26,000 feet (8,000 meters) with 44,500 pounds (20,227 kilograms) payload.

C-130H: 23,000 feet (7,077 meters) with 42,000 pounds (19,090 kilograms) payload.

C-130E: 19,000 feet (5,846 meters) with 42,000 pounds (19,090 kilograms) payload

Maximum Takeoff Weight:

C-130E/H: 155,000 pounds (69,750 kilograms)

C-130J: 164,000 pounds (74,393 kilograms)

Maximum Allowable Payload:

C-130E, 42,000 pounds (19,090 kilograms)

C-130H, 42,000 pounds (19,090 kilograms)

C-130J, 42,000 pounds (19,090 kilograms)

C-130J-30, 44,000 (19,958 kilograms)

Maximum Normal Payload:

C-130E, 36,500 pounds (16,590 kilograms)

C-130H, 36,500 pounds (16,590 kilograms)

C-130J, 34,000 pounds (15,422 kilograms)

C-130J-30, 36,000 pounds (16,329 kilograms)

Range at Maximum Normal Payload:

C-130E, 1,150 miles (1,000 nautical miles)

C-130H, 1,208 miles (1,050 nautical miles)

C-130J, 2,071 miles (1,800 nautical miles)

C-130J-30, 1,956 miles (1,700 nautical miles)

Range with 35,000 pounds of Payload:

C-130E, 1,438 miles (1,250 nautical miles)

C-130H, 1,496 miles (1,300 nautical miles)

C-130J, 1,841 miles (1,600 nautical miles)

C-130J-30, 2,417 miles (2,100 nautical miles)

Maximum Load:

C-130E/H/J: 6 pallets or 72 litters or 16 CDS bundles or 90 combat troops or 64 paratroopers, or a combination of any of these up to the cargo compartment capacity or maximum allowable weight.

C-130J-30: 8 pallets or 97 litters or 24 CDS bundles or 128 combat troops or 92 paratroopers, or a combination of any of these up to the cargo compartment capacity or maximum allowable weight.

Crew: C-130E/H: Five (two pilots, navigator, flight engineer and loadmaster)

C-130J/J-30: Three (two pilots and loadmaster)

Aeromedical Evacuation Role: A basic crew of five (two flight nurses and three medical technicians) is added for aeromedical evacuation missions. Medical crew may be decreased or increased as required by the needs of patients.

Unit Cost: C-130E, $11.9, C-130H, $30.1, C-130J, $75.5 (FY 2017 Then dollars in millions)

Date Deployed: C-130A, Dec 1956; C-130B, May 1959; C-130E, Aug 1962; C-130H, Jun 1974; C-130J, Feb 1999

Inventory: Active force, 145; Air National Guard, 181; Air Force Reserve, 102

(Current as of June 2018)
